Libera BLM
The Libera BLM is a processor for signals coming from the beam-loss detectors. In contrast to other similar BLM systems, it detects losses ranging from a single electron to the huge losses that usually occur during injection. Thanks to its high time resolution (8 ns) and 50 Ohm input termination, it provides detailed insight into sub-turn and intra-pulse losses. When switched to a high-impedance input termination, it is able to detect very small losses.
The instrument connects to up to four beam-loss detectors and provides them with power and gain-control voltage. Libera BLM works best with Libera beam loss detector – Libera BLD.
Product Description
Papers
References
Benefits:
- Portable system, easy to deploy and use
- Compact and robust design
- Power over Ethernet for complete system
- Configurable processing functionalities, dedicated for beam loss monitoring
- No maintenance required
- Variety of interfaces (e.g. EPICS, TANGO, HTTP, MATLAB) and Web GUI
- Built-in detector calibration
Data processing:
The signal from the beam loss detector (usually a photo-multiplier tube) is typically a unipolar pulse or train of pulses with negative polarity. Example of a loss signal is shown in the figure below.
Processing is split to 2 general principles:
- buffered mode
- counting mode
Data from both modes can be used in parallel.
In the buffered mode, the raw sampled data is stored in a buffer upon a trigger event (auto-trigger or external). Digital signal processing includes DC offset removal, integration/averaging interval and ADC mask which is applied to raw ADC samples. Decimated data is stored in the SUM and AVG buffers and streamed to a continuous SA data stream according to figure below.

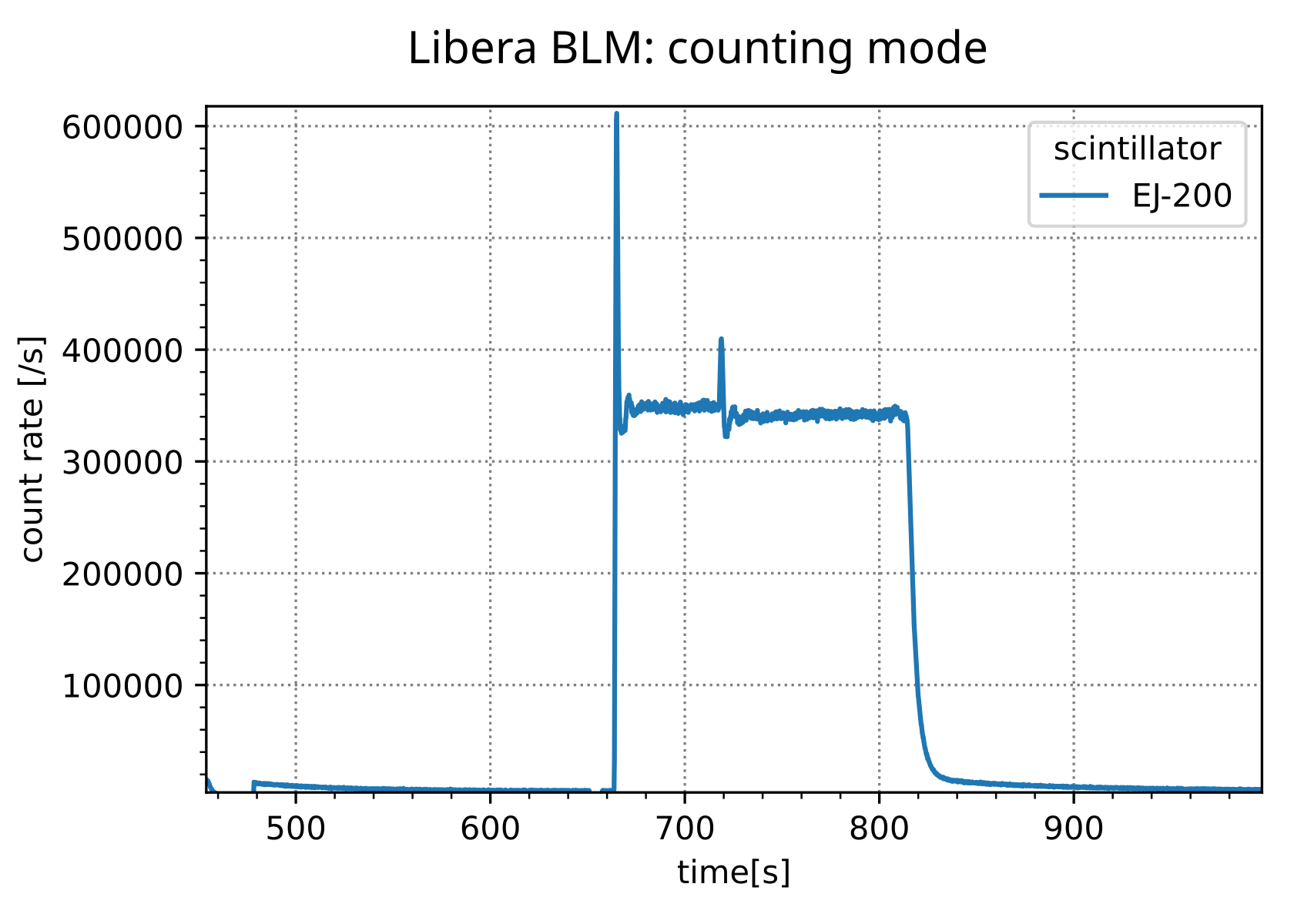

In the counting mode, the raw sampled data is continuously (8 ns) monitored to automatically detect individual loss events and count them based on adjustable absolute or relative thresholds logic. The output of this stream is “counts per period” (e.g. counts/s.)When the A/D converter is locked to a reference clock, it is possible to adjust up to two configurable detection windows that monitor only a selected part of the fill pattern. Outputs are 2 counter streams according to figure below.
With up to 4 beam loss detectors connected to the same instrument, an algorithm can automatically detect if the loss was detected in all detectors within the same time window. This is called coincidence counting mode. Coincidence is counted for each of the 4 channels resulting in 4 coincidence counting data streams. Configuration logic (example for master channel A) is shown in figure below.
Interfaces:

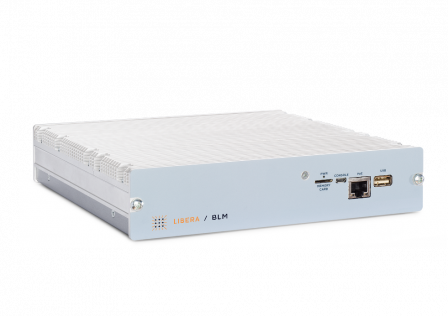

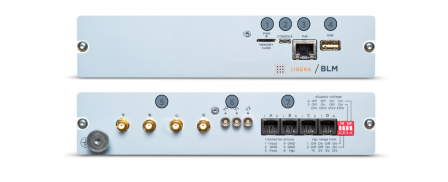

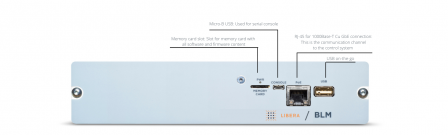

- Memory card slot.
- Serial console (Micro-B USB).
- RJ-45 for 1000Base-T Cu GbE connection and Power-over-Ethernet.
- USB slot.

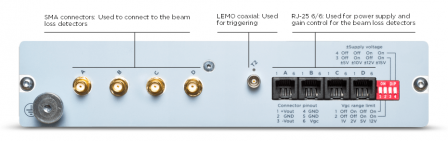

- SMA connectors for connections to the beam loss detectors.
- LEMO coaxial, used for various trigger signals.

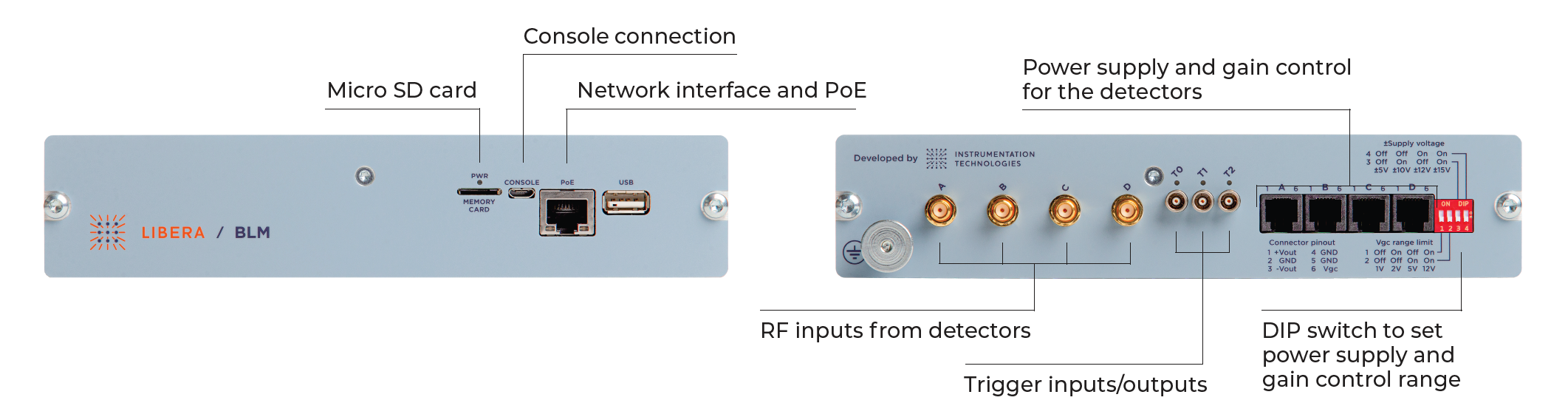

- RJ-25 6/6 for power supply and gain control for the beam loss detectors.
Set-up example:

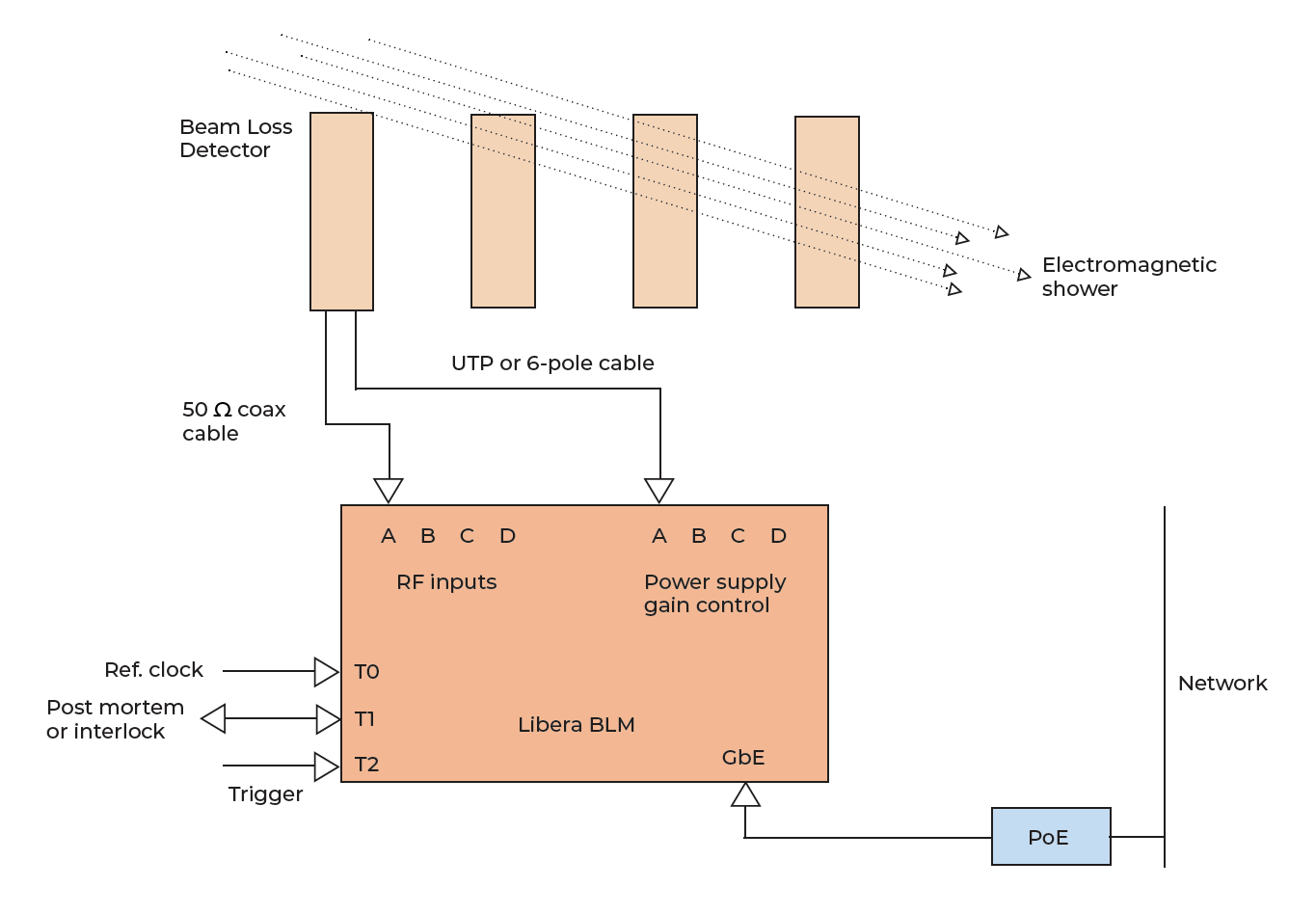

Libera BLM provides the power and gain control voltage to up to 4 beam loss detectors via standard flat cable (6 wires). High voltage is generated inside the photo-multiplier tube (PMT). Output signal from the PMT to the Libera BLM is provided through a standard 50 Ohm coaxial cable.
Beam loss detector must be exposed to the electromagnetic shower. The scintillator is located in the upper part of the detector, about 11 cm from top. Orientation of the detector with reference to the vacuum chamber shall be decided after tests. Typically, it is positioned vertically or horizontally and fitted to the vacuum chamber directly.
The Libera BLM is installed outside the tunnel. Cable lengths for the beam loss detectors can range up to 100 meters (tested).
Hardware capabilities and specifications of Libera BLM
| Libera BLM | |
|---|---|
| General product code | LBLM |
| Input channels | 4 |
| Input frequency range | ~35 MHz large signal bandwidth ~50 MHz small signal bandwidth |
| Matching impedance | 50 Ohm / 1 MOhm, software selectable |
| Maximum input signal | +/- 5 V @ 50 Ohm +/- 1.25 V @ 1 MOhm |
| A/D conversion | 125 MHz, 14 bit |
| Power supply | Power-over-Ethernet (<15 W) |
| Timing signals | Electrical, 3 inputs |
| Output channels | 4x power supply (up to +/-15 V) 4x gain control (up to +12 V) |
Typical applications
| Application | Description |
|---|---|
| Low loss detection | Detecting volumes as low as a single electron loss using high input impedance and high gain. |
| Strong and fast loss detection | Detecting strong losses during injection (typically) using 50 Ohm termination. |
| Automatic loss detection | Adjustable threshold for automatic acquisition trigger. |
| Configurable processing parameters | ADC offset compensation, integration and averaging window lengths, less detection windows and individual channel delays. |
| Counting modes | Dedicated algorithm for detecting and counting loss events based on adjustable threshold logic. |
| Coincidence loss detection | Compare up to 4 channels for simultaneous loss events. |
| Loss value calibration | Compensate the raw loss value with current gain settings (attenuation, photomultiplier tude dynamic gain and non-idealities - attenuator errors, detector-specific differences). |
| Postmortem data storage | Dedicated memory buffer is intended for storing the data just before a postmortem trigger event. |
| Photosensor control | Provide power supply and adjust gain control voltage to up to 4 independent channels. |
User Interfaces
The instrument runs on a Libera BASE software infrastructure. The infrastructure supports various plugins (interface servers) that are compatible with most common control system interfaces on users’ side:
- EPICS: libera-ioc
- TANGO: libera-ds
- MATLAB/LabVIEW: libera-telnet-server
- HTTP/WEB: libera-http-plugin
- C++ : libera-mci
- PYTHON: libera-pymci

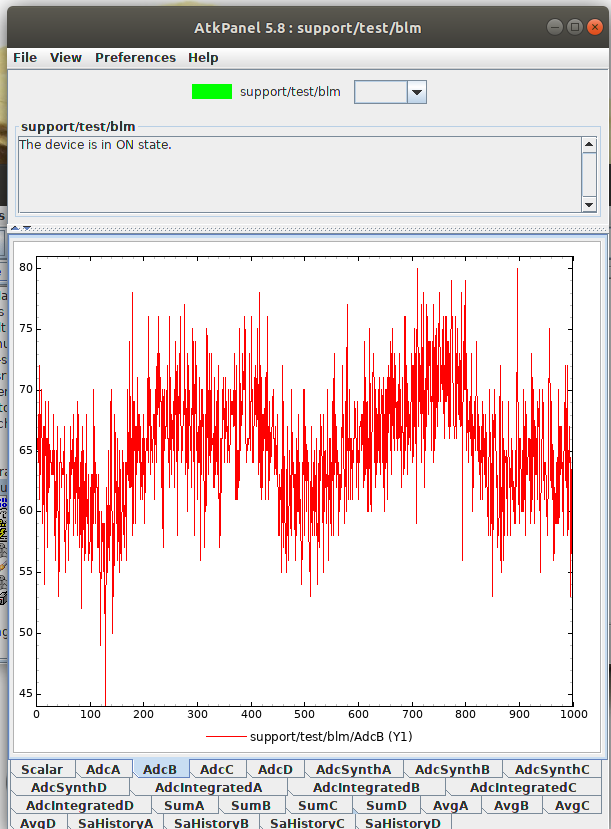

Graphical user interface for TANGO users is built by the AtkPanel tool automatically.
EPICS users have various options: from EDM, caQtDM to CSS.

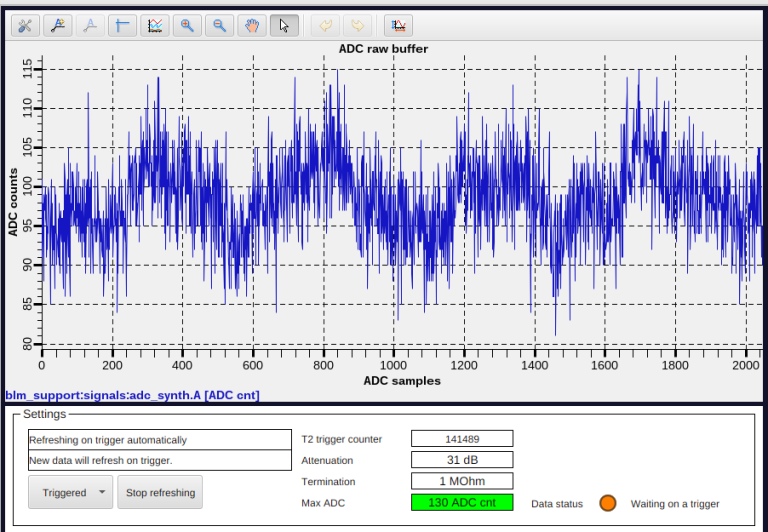

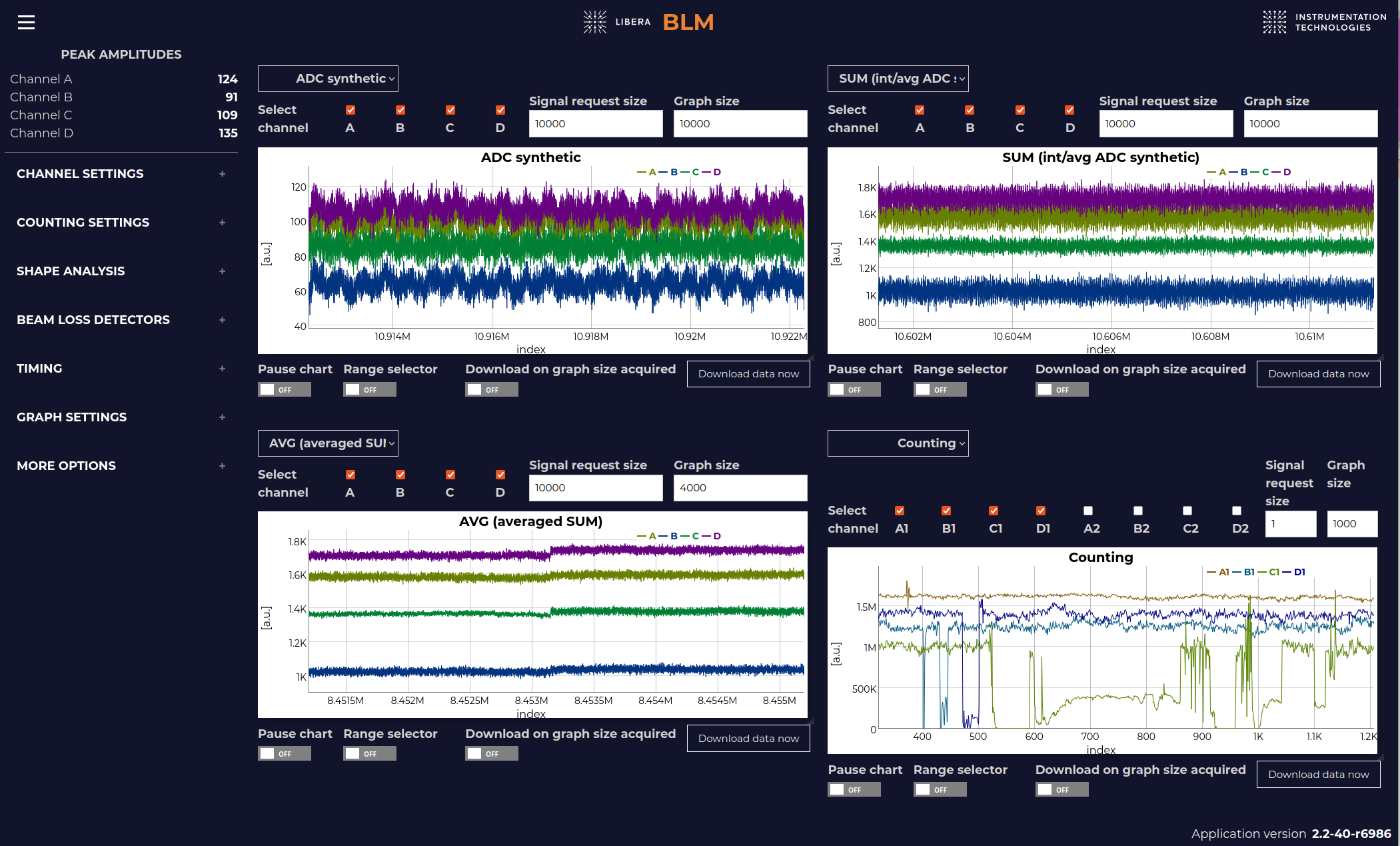

Another very intuitive and easy-to-start interface is the BLM Web GUI, which runs on the users web browser and allows users to access instrument parameter nodes and read out signals without having to understand Linux, ssh and command line interfaces or go through the whole procedure of installing EPICS or TANGO.
As an example, the gallery below shows the GUI panels built on the EDM technology.
Main panel for Libera BLM. It shows an overview for all input channels and main configuration.
Signal processing overview
Parameters that configure processing for buffered data
Parameters that configure the counting modes
Configuration for coincidence counting
Postmortem configuration

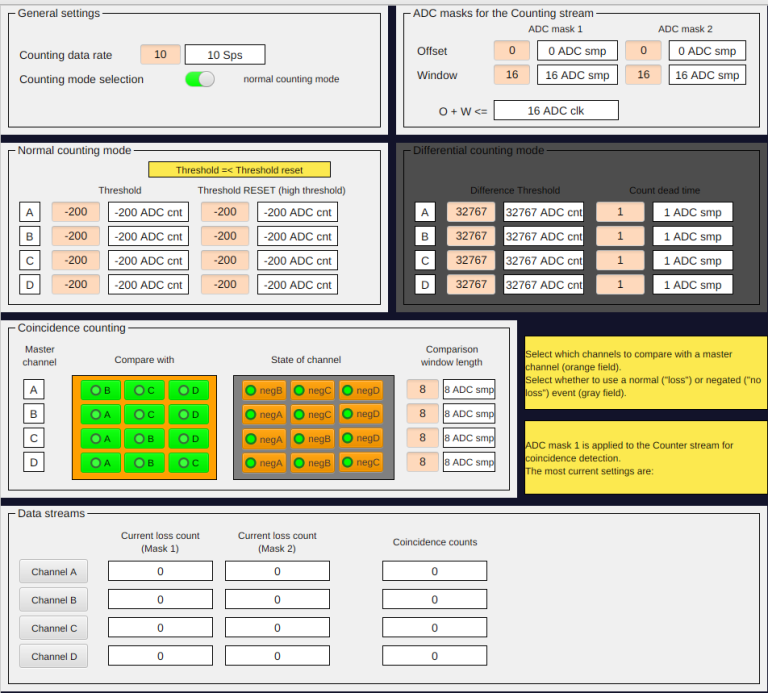

Counting and coincidence counting overview

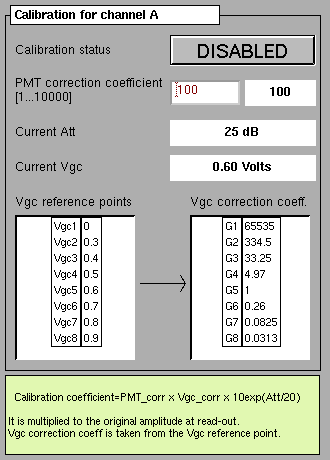

Configuration for calibration coefficients
Overview over timing signals
Libera BLM
Libera BLM is used at the following labs:
- ALS – Lawrence Berkley National Laboratory (LBNL), USA
- ANKA – Karlsruhe Institute of Technology-Forschungszentrum Karlsruhe (KIT-FZK), Germany
- APS – Argonne National Laboratory (ANL), USA
- Australian Synchrotron – Australian Synchrotron, Australia
- BESSY II – Helmholtz-Zentrum Berlin, Germany
- C-ADS, CSNS – Institute of High Energy (IHEP), China
- CSR, HIRFL, ADS, BNCT, HEERF – Institute of Modern Physics Chinese Academy of Sciences (IMP-CAS), China
- Diamond Light Source – Diamond Light Source, United Kingdom
- ESRF – The European Synchrotron Radiation Facility (ESRF), France
- HiSOR – Hiroshima Synchrotron Radiation Center, Japan
- HUST – Huazhong University of Science & Technology, China
- Kaeri – Korea Atomic Energy Research Institute (KAERI), South Korea
- LNL-Legnaro – Laboratori Nazionali di Frascati dell’INFN, Italy
- MAX IV – Lund University, Sweden
- PLS II, EUV – Pohang Accelerator Laboratory (PAL), South Korea
- SACLA – Japan Synchrotron Radiation Research Institute (JASRI), Japan
- SESAME – The Synchrotron-Light for Experimental Science and Applications in the Middle East (SESAME), Jordan
- SLRI – Synchrotron Light Research Institute, Tailand
- SLS, SwissFEL – Paul Schrerrer Institute (PSI), Switzerland
- SPEAR3 – Stanford Linear Accelerator Center (SLAC), USA
- SSRF, Shanghai APACTRON – Shanghai Synchrotron Radiation Facility (SINAP), China
- Synchrotron Soleil – Synchrotron SOLEIL, France
- TPS – National Synchrotron Radiation Research Center (NSRRC), Taiwan
