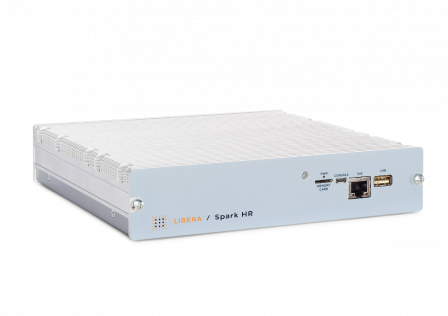

Libera Spark HR
Libera Spark is a compact beam position processor that offers high-precision position measurement of different beam types (electrons, protons, ions, etc.). It is optimized to work with button, stripline and shoe-box pickups. The digital signal processing (DSP) supports detailed adjustment of the processing window and position measurement in various regimes and bandwidths. Depending on the requirements and the Libera Spark version, the data available to the user ranges from bunch-to-bunch, turn-by-turn to slow data stream.
Product Description
Papers
Tutorial
Testimonials
Benefits:
- Best price/performance ratio
- Compact and robust design
- Power over Ethernet
- Source code available
- No maintenance required
- EPICS & Tango & MATLAB ready

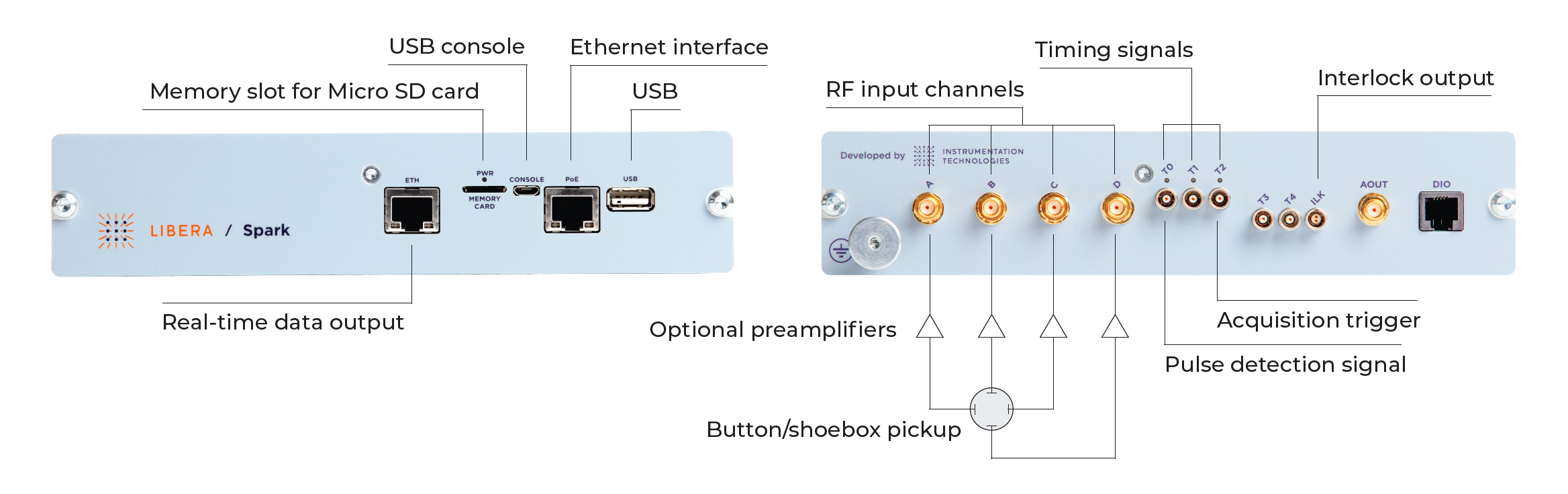

Interfaces:
Libera Spark HR Capabilities
| General product code | LSHR |
| BPM slots | 1 |
| Supported input frequency range | <35 MHz/<45 MHz |
| A/D conversion | 125 MHz |
| Cooling | Passive |
| Power supply | PoE |
| Timing signals | Electrical (up to 3) * |
| Fast data links | RJ-45 |
| Maximum input signal* | <1.2 V peak pulse voltage * |
| Input gain/attenuation | Programmable, 31dB |
| Temperature drift, typical | <2 μm/°C |
| Position RMS at bunch-by-bunch data rate | 10 μm ** |
| Position RMS at fast 10 kHz data rate | / |
| Position RMS at slow 10 Hz data rate | / |
| Position RMS at 1 MHz data rate | |
| Dimensions | H: 1U, W: 9.5" (rack mountable with a kit), D: 210mm |
* Can be extended/customized depending on user requirements
** Measured with K=10mm
Libera Spark HR Functionalities
| Bunch-by-bunch processing | Yes |
| Real-time data streaming | Optional * |
| Slow data | No |
| Gain control | Yes |
| Selectable processing window | Yes |
| Processing delay | Yes |
| Multi-chassis synchronization | Trigger-based |
| Data time stamping | Trigger-counter |
| Interlock detection and output | Optional ** |
| Postmortem capability | No |
| FFT/FFZ peak | No |
| Single-pass measurement | Yes |
| Additional Digital I/O channels and Analog output | Optional ** |
| Closed Orbit Feedback Application | No |
* Requires additional module: GbE module
** Requires additional module: DAI module
Libera Spark HR
For demonstration purposes, Libera Spark can be fully controlled with a Qt Graphical User Interface. It uses a netcat utility that connects to Libera Spark via SCPI set/read commands. Check example figures and tutorial videos.
Libera Spark – ADC
Libera Spark – FFT
Libera Spark – Parameters
Libera Spark – TBTXY
Overview
Getting started with GUI
Set up the custom ADC coupling frequency
ADC data readout
