DWC Module
Product Description

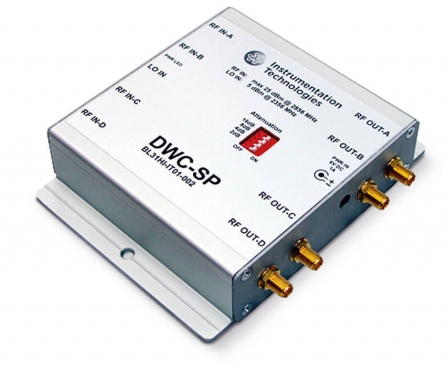

The circuit is intended for the usage as an external down converting front-end for the Libera BPM units. For the proper functionality a stable LO sine signal has to be provided to the module.
Technical specifications of the DWC module
| 1 GHz | 1.3 GHz | 3 GHz | |
|---|---|---|---|
| General product code | LDWC1.000.001 | LDWC1.000.002 | LDWC1.000.003 |
| Supply voltage | 6 V DC | 6 V DC | 6 V DC |
| RF Input connector | SMA | SMA | SMA |
| RF Input frequency | ∼ 1000 MHz | ∼ 1300 MHz | ∼ 3000 MHz |
| RF Input power | Max 15 dBm | Max 15 dBm | Max 15 dBm |
| LO Input connector | SMA | SMA | SMA |
| LO Input frequency | Max 500 MHz | Max 900 MHz | Max 2800 MHz |
| LO Input power | 5 dBm | 5 dBm | 5 dBm |
| RF Output connector | SMA | SMA | SMA |
| RF Output frequency | <600 MHz | <600 MHz | <600 MHz |
